At 3,740 feet above sea level, El Paso presents a unique set of challenges for deep excavations. The city sits atop the Hueco Bolson, a structural basin filled with thousands of feet of interbedded clay, silt, sand, and gravel deposited over millions of years. What looks like uniform desert terrain from the surface often conceals abrupt transitions between dense cemented caliche, loose alluvial fans, and expansive clay lenses that can heave or shrink with seasonal moisture changes. For any excavation deeper than 10 feet, the IBC requires a documented geotechnical monitoring plan, and El Paso's Building Safety Division enforces those provisions strictly. Our team approaches each monitoring campaign by first reviewing the geotechnical baseline report, then installing instrumentation arrays that track lateral movement, groundwater migration, and vibration in real time. The goal is never just to meet the code — it is to give the structural engineer and the contractor early warning before small deformations become safety incidents. In projects near I-10 or the Rio Grande floodplain, we frequently combine excavation monitoring with CPT soundings to continuously log shear strength with depth, and we validate the soil behavior type against grain-size analysis performed in our AASHTO-accredited lab.
Monitoring is not about collecting data; it is about interpreting it fast enough to change the construction sequence before the ground does it for you.
Methodology and scope
- Inclinometers installed in cased boreholes detect lateral displacement as small as 0.01 inch, with readings taken daily during active excavation.
- Vibrating-wire piezometers capture pore-water pressure changes triggered by dewatering or sudden recharge after a monsoon storm.

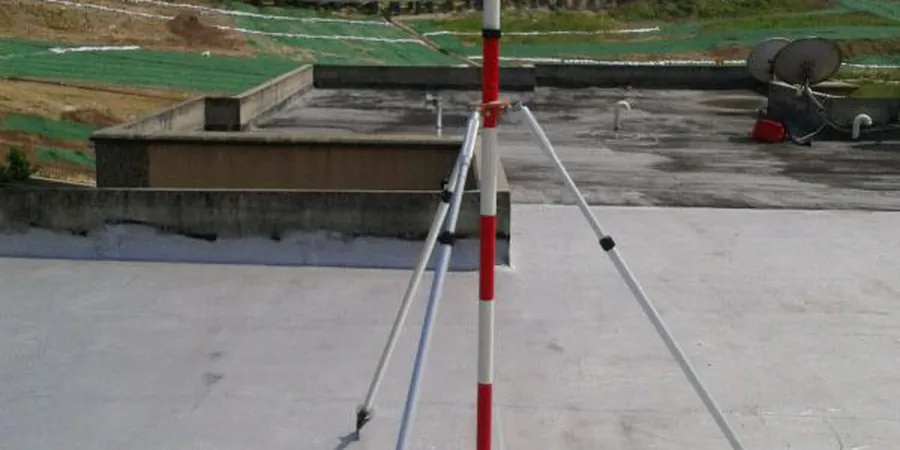

- Crack monitors and settlement points on adjacent structures establish a pre-construction baseline, then track movement weekly against IBC Table 1804.1 thresholds.
Local considerations
The Chihuahuan Desert climate creates a monitoring challenge that coastal cities rarely face: extreme diurnal temperature swings of 30°F or more can expand and contract steel casings enough to mimic ground movement in the data. Our technicians correct for thermal effects using temperature-compensated sensors and redundant readings during the coolest part of the morning. Monsoon season, from late June through September, adds another layer of risk. A single thunderstorm can drop 1.5 inches of rain in an hour over the Franklin Mountains, sending sheet flow into open excavations and abruptly raising the phreatic surface in the bolson deposits. Without real-time piezometer data, a contractor can lose a shored face in minutes. The team also watches for desiccation cracking in clay-rich cut slopes during the dry months — a phenomenon that weakens the passive resistance zone ahead of the excavation face and is often missed in the initial design assumptions. Each of these failure modes is preventable when the monitoring plan is written for El Paso's specific hydrogeologic regime, not copied from a generic IBC template.
Explanatory video
Applicable standards
IBC 2024 Chapter 33 (Safeguards During Construction), ASTM D7299-20 (Inclinometer Installation and Monitoring), El Paso Municipal Code Chapter 18.02 (Building Code Amendments)
Associated technical services
Deep Excavation Monitoring Package
Designed for excavations exceeding 15 feet or those adjacent to occupied buildings. Includes automated inclinometer strings, multi-level vibrating-wire piezometers, and optical settlement arrays. Data is reviewed daily by a licensed geotechnical engineer who compares readings against the deformation limits established in the shoring submittal.
Utility Trench and Cut Monitoring
For linear excavations along city rights-of-way, including water and sewer line replacements. Deploy portable inclinometer probes, standpipe piezometers, and pavement settlement points. The program focuses on protecting adjacent asphalt, curb lines, and shallow utilities, with weekly reports submitted to El Paso Water or TXDOT as required by the permit.
Typical parameters
Frequently asked questions
When does the El Paso building code require an excavation monitoring plan?
Per El Paso Municipal Code Chapter 18.02, which adopts and amends the IBC, a geotechnical monitoring plan is required when an excavation exceeds 10 feet in depth or when it is within a horizontal distance equal to the excavation depth from an existing structure. The plan must be sealed by a Texas-licensed professional engineer and include instrumentation types, locations, reading frequencies, and threshold values for stopping work.
What instruments are typically used for geotechnical excavation monitoring?
A standard array includes in-place inclinometers to measure lateral deflection of the shoring wall, vibrating-wire piezometers to track groundwater pressure, and optical survey targets on adjacent buildings and pavement for vertical settlement. For rock excavations near the Franklin Mountains, crack meters and seismographs may be added to monitor blast-induced vibration and fracture propagation.
How much does excavation monitoring cost for a typical project in El Paso?
Monitoring costs for a mid-size commercial excavation in El Paso range from approximately US$870 for a short-duration utility trench program to US$2,840 per month for a comprehensive deep excavation package with automated data logging and daily engineering review. The final cost depends on the number of instruments, the monitoring duration, and the reporting frequency required by the permit.
How fast can the monitoring team respond to an alert?
The system is configured to send SMS and email alerts within 60 seconds of any sensor exceeding its threshold. A local field technician can be on-site within 60 to 90 minutes anywhere in the El Paso metro area to verify the reading, inspect the excavation face, and coordinate with the contractor on corrective actions if needed.
