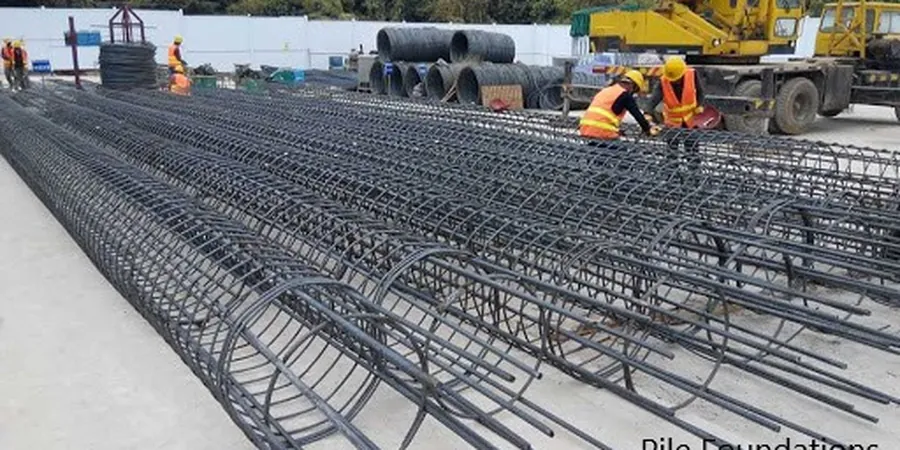

IBC Chapter 18 and ASCE 7-22 set the framework for deep foundations, but in El Paso the subsurface makes those requirements especially acute. The Santa Fe Group deposits beneath the city alternate between stiff clays, cemented caliche layers, and loose fluvial sands—a sequence that frustrates shallow footings and demands a pile foundation design grounded in site-specific borings. Our laboratory works directly with SPT data from rigs operating across the Franklin Mountains foothills and the Rio Grande floodplain, testing samples to ASTM D2487 and D1586 so that skin friction and end-bearing calculations reflect what is actually down there, not a generic textbook profile. In neighborhoods like Kern Place or commercial strips on Mesa Street, the depth to competent bearing can shift by ten feet in a single block, and a pile foundation design built on interpolated assumptions is a liability no structural engineer should carry.
El Paso's caliche layers can carry end-bearing pressures above 40 ksf—but only when the socket is verified by laboratory strength testing, not assumed from blow counts alone.
Methodology and scope
Local considerations
El Paso sits within the Rio Grande Rift, a tectonically active extensional basin with fault traces mapped through the city and Quaternary deposits exceeding 2,000 feet in thickness. Seismic hazard is moderate—PGA values around 0.12g for the 2,475-year return period—but the basin geometry amplifies long-period motion. Pile foundation design here must account for liquefaction of loose Holocene sands near the river and for downdrag where fill or consolidating clay imposes negative skin friction. The expansive clays that dominate the upper profile present a different threat: cyclic wetting from monsoon storms and irrigation swells the soil, then drying in the 300-plus sunny days per year shrinks it, generating uplift that can pull shallow piles out of their sockets if the bond length is cut too short. A design that ignores the seasonal moisture fluctuation in the upper 10 feet will fail, and we have seen it happen in East El Paso subdivisions built on former agricultural land.
Applicable standards
IBC 2024 Chapter 18 – Deep Foundations, ASCE 7-22 – Minimum Design Loads, ASTM D1586-18 – SPT and Split-Barrel Sampling, ASTM D2487-17 – Soil Classification (USCS), ASTM D1143/D1143M-20 – Deep Foundations Under Static Axial Compressive Load, ACI 543R-12 – Guide to Design, Manufacture, and Installation of Concrete Piles
Associated technical services
Laboratory strength testing for pile capacity
Unconfined compression and triaxial UU tests on caliche and stiff clay cores to determine undrained shear strength for skin friction and end-bearing calculations per AASHTO LRFD methods.
Expansive soil characterization
Atterberg limits, swell-consolidation, and suction testing on Santa Fe Group clays to quantify heave potential and establish the neutral plane depth for pile design per PTI guidelines.
Aggregate and concrete durability analysis
Sulfate resistance testing, pH, resistivity, and chloride content on soil and groundwater samples to specify concrete mix design and corrosion protection for cast-in-place and driven piles.
Typical parameters
Frequently asked questions
What is the typical cost range for a pile foundation design study in El Paso?
A complete pile foundation design package for a single-family residential or light commercial project in El Paso generally runs between US$1,500 and US$6,950, depending on the number of borings, the depth of exploration, and the laboratory testing program required. Projects needing corrosion analysis, expansive soil characterization, or static load test supervision fall toward the upper end of that range.
How deep do piles typically need to go in El Paso to reach competent bearing?
It varies block by block. In the foothills near the Franklin Mountains, caliche bedrock may be encountered at 10 to 20 feet. In the river valley and eastward into the Hueco Bolson, competent bearing may require 30 to 60 feet or deeper. Site-specific borings are mandatory.
Can I use driven piles instead of drilled shafts in El Paso soils?
Driven piles are feasible in the looser fluvial sands of the Rio Grande floodplain, but in areas with thick caliche or dense cemented conglomerates, predrilling or drilled shafts are usually necessary. The choice depends on refusal depth and the presence of cobbles. More info.
