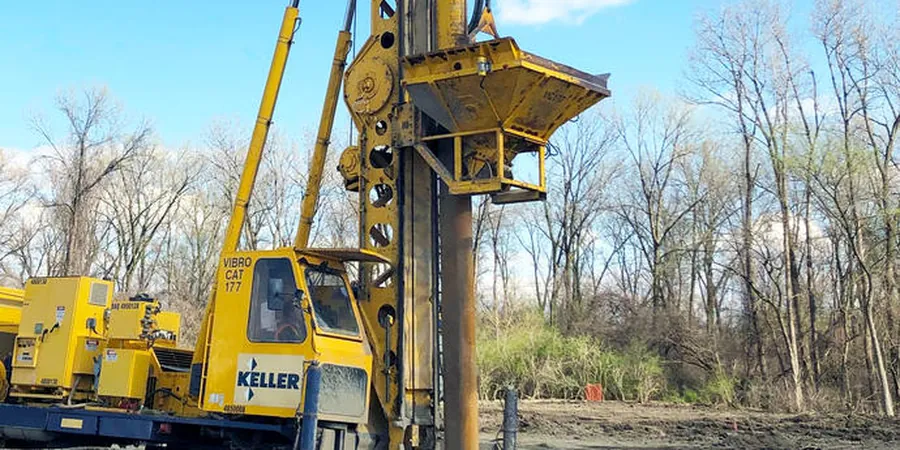

El Paso’s expansion from a river-crossing settlement into a binational metro area pushed development onto the deep alluvial fans and basin-fill deposits flanking the Franklin Mountains. These sandy layers, often deposited during Pleistocene pluvial cycles, can carry loose zones that settle unevenly under structural loads. For projects east of the mountain front or in the Lower Valley, vibrocompaction design becomes a practical path to densify granular profiles before placing footings or slabs. An in-situ permeability test often precedes the design phase because drainage performance dictates how effectively the vibratory energy propagates through the formation. The goal is straightforward: raise relative density above the thresholds defined in IBC Chapter 18 so that total and differential settlements stay within tolerable limits for the service life of the structure.
Designing vibrocompaction in El Paso means programming the grid to reach dense sand before the summer monsoon season raises groundwater and compromises probe efficiency.
Methodology and scope
Local considerations
El Paso lies within the Rio Grande Rift, a seismically active extensional basin where the 1887 Bavispe earthquake caused Modified Mercalli Intensity VI shaking in the city. Loose granular soils in this setting present two threats: excessive settlement under static load and potential for seismic-induced densification. A vibrocompaction design that ignores the site-specific peak ground acceleration risks leaving the treated mass with residual collapse potential during a moderate event. Our scope includes liquefaction screening using the NCEER/Youd-Idriss 2001 procedure, combined with the El Paso geologic hazard maps that delineate zones of Holocene faulting. When the analysis indicates a factor of safety below 1.3 for the design earthquake, we modify the grid and energy input to push relative density past 80 percent, effectively eliminating the contractive behavior that drives pore-pressure buildup.
Applicable standards
ASTM D6066-11, IBC 2024 Chapter 18, ASCE 7-22 Section 12.13
Associated technical services
Feasibility and predesign investigation
We review existing geotechnical reports and perform supplementary SPT soundings to map the loose zone extent across the building footprint before committing to a grid layout.
Production design and treatment specification
Detailed plan sheets showing probe locations, energy calibration targets, sequencing rules, and real-time monitoring parameters for the vibrator operator.
Typical parameters
Frequently asked questions
How much does vibrocompaction design cost for a typical El Paso warehouse pad?
Design fees for a pad up to 20,000 square feet generally run between US$1,600 and US$4,960, depending on the number of pre-treatment CPT soundings and the complexity of the acceptance criteria required by the structural engineer.
Can vibrocompaction work in the silty sands found near the Rio Grande?
It can, provided the fines content stays below 15 percent. When silt exceeds that threshold, the design may need to incorporate pre-drilling or a drainage phase, and we evaluate whether stone columns offer a more predictable alternative for those zones.
What verification do you specify after vibrocompaction?
We typically require CPT soundings at the centroid of the treatment grid, performed no sooner than 48 hours after the last pass. The acceptance criterion is achieving the design tip resistance profile across the full treatment depth.
How does the summer monsoon affect vibrocompaction in El Paso?
The monsoon raises the water table in the basin, which reduces effective stress and can cause the probe hole to collapse before full depth is reached. Our designs schedule treatment for the drier winter-spring window or specify pre-drilling when summer work is unavoidable.
