Foundation engineering in El Paso must account for the region’s complex basin-and-range geology, where loose alluvial sands, expansive clays, and shallow groundwater near the Rio Grande create variable bearing conditions. Our category addresses site-specific challenges through subsurface investigation, bearing capacity analysis, and settlement control aligned with IBC and local El Paso amendments. For deep support in weak soils, our pile foundation design service provides solutions that transfer loads to competent strata or bedrock, ensuring long-term stability in this seismically active zone.
From residential slabs on the east side to commercial developments in the Franklin Mountains foothills, every project demands a foundation system tailored to local soil behavior. Expansive clay mitigation and proper drainage integration are critical for preventing distress in both shallow footings and deep foundations. We support projects requiring drilled pier and micropile systems where access or load demands preclude conventional approaches, delivering code-compliant designs that perform in El Paso’s demanding subsurface environment.
A well-designed anchor in El Paso soil is one that survives the monsoon cycle without losing pre-stress.
Methodology and scope
Local considerations
The Scenic Drive landslide complex is a real reminder that El Paso's mountain-front geology doesn't forgive shortcuts. Anchored retaining walls along steep cuts in the Franklin Mountains face debris flow hazards and fractured rhyolite with unpredictable groundwater seepage after storms. If a passive anchor is placed in a zone that later saturates, the bond strength can drop by 30% or more within hours. The biggest risk in the downtown and UTEP areas is tieback failure under phased excavation loads—the anchor head remains intact while the grout column creeps in saturated silt. We insist on sacrificial lift-off testing on site, not just the minimum code requirement, because the cost of a failed shoring wall on a confined urban lot runs well into six figures. Verification through slope stability analysis is non-negotiable when the anchor is part of a global stabilization scheme.
Explanatory video
Applicable standards
PTI DC35.1-14 Recommendations for Prestressed Rock and Soil Anchors, ASTM D4435-13e1 Standard Test Method for Rock Bolt Anchor Pull Test, ASTM A416/A416M-18 Standard Specification for Low-Relaxation, Seven-Wire Steel Strand for Prestressed Concrete
Associated technical services
Active Anchor Systems
Pre-stressed tiebacks and rock anchors for permanent retaining structures. We design the free and bond lengths to transfer load beyond the active wedge, with lock-off procedures that compensate for wedge seating loss. Suited for deep basements and bridge abutments.
Passive Anchor Solutions
Unbonded dowels and soil nails for temporary shoring and slope reinforcement. These systems mobilize resistance through ground deformation, which we calibrate to El Paso's granular colluvial soils so movement stays within service limits.
Typical parameters
Frequently asked questions
What is the cost range for anchor design and testing in El Paso?
For a typical project requiring anchor design, submittal preparation, and on-site load testing, the fee ranges from US$1,100 to US$4,150 depending on the number of anchors and the complexity of the access conditions.
Do you specify both active and passive anchors for the same project?
Yes, it's common in El Paso. We might use active tiebacks to control movement on a shoring wall adjacent to an existing building, while passive soil nails stabilize the cut slope above it where some deformation can be tolerated.
How do you verify the bond strength in El Paso's colluvium?
We run performance and proof tests per ASTM D4435 on sacrificial anchors. The test data is correlated with the site investigation, often cross-referenced with SPT blow counts or CPT tip resistance from the same borehole location.
What corrosion protection level is required for permanent anchors here?

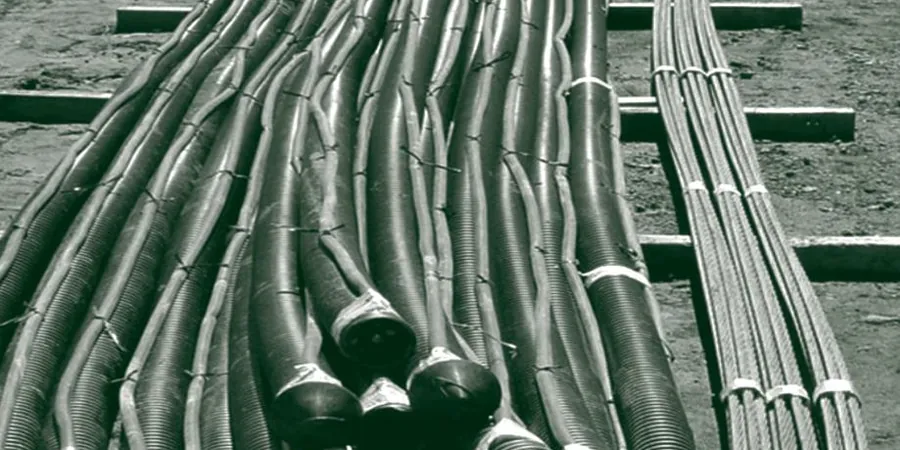

Given the occasional presence of sulfates in the basin soils and the wet-dry cycles, we specify Class II protection—a fully encapsulated tendon inside a corrugated sheath with grout filling the annular space—for any permanent installation.
